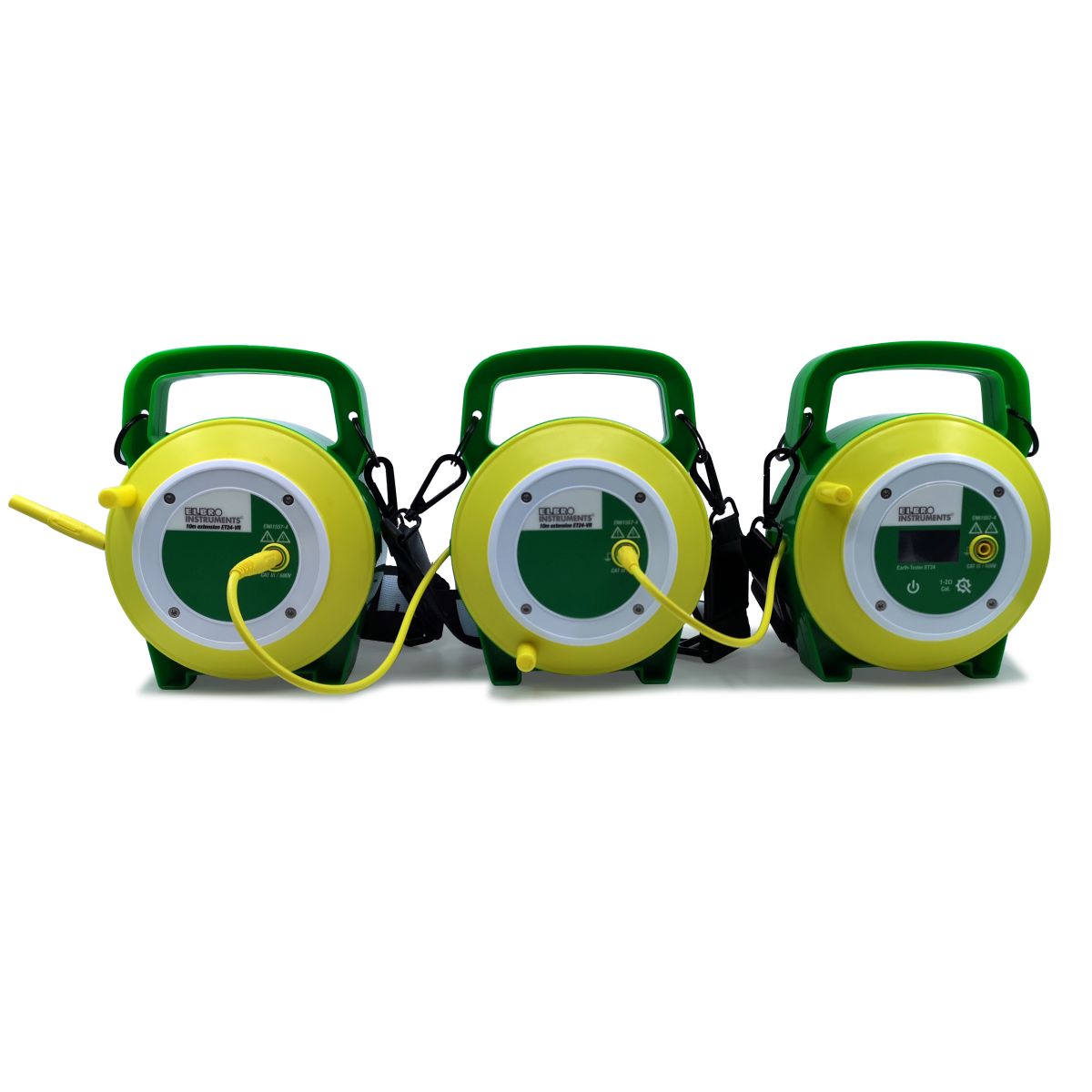

Earthing tester ELBRO ET24-20 for NIV/NIN CATIII 600V

Earth tester ET24-20 with cable reel system, 20 m double-insulated measuring cable, OLED display, measuring time 1 sec., polarity reversal during measurement, display of (+) value, (-) value, and average value, display of room temperature during measurement, CAT III 600V (phase-ground) and (phase-phase), test current; >200 mA, test voltage; >4 V, measuring range 0.00...29.9 W, resolution 0.01 ohms, pollution degree 2, 9 V block battery 1200mA lithium manganese oxide (LiMnO2)6LR61/6F22, battery life for 5000 measurements at 1 ohm, recalibration possible before measurement, beep tone can be set to 1 or 2 ohms, stores the last measured value even after switching off, weight incl. battery 460 g, dimensions 130×62 mm, Measurements are performed in accordance with Swiss NIV/NIN standards. This measuring device complies with EN 61010-1:2010, EN 61557-1-2-4, EMC IEC/EN 61326-1:2013, and IEC/EN 61326-2-2:2014 standards.
