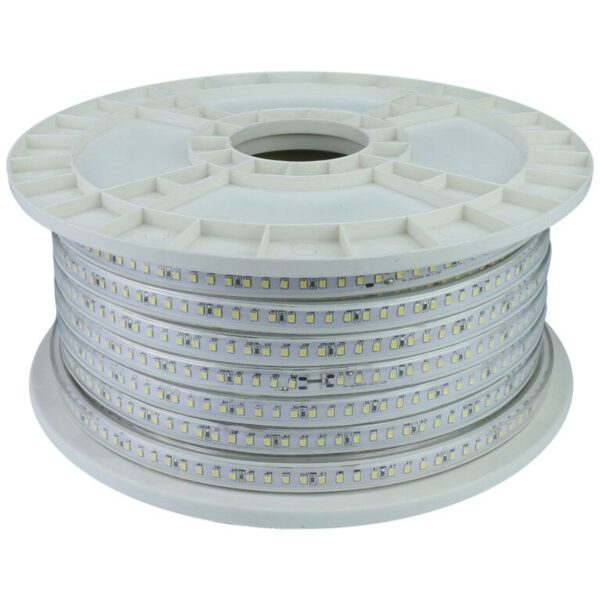

LED light strip for flexible use, single-sided, on reel, L=50 m, 250 W, W=15 mm, H=7 mm, 120 LEDs/m, 230 V AC, 4000 K, IP65
Description:
Temporary lighting on the construction site - Horizontal or suspended installation - Ideal in building shells, stairwells and corridors - Quick installation, easy to dismantle - Indoor and outdoor use (IP65) - Connection cable with plug IP55 (protection class II) - Can be divided using K227059 and K227061 - Supplied with additional connection set (connection cable with plug)- Length 50 meters additional connection set (connection cable with plug, end cap)- Length 50 meters - Width 15 mm, height 7 mm - Cut marks every 1.0 meter - Power consumption 5 W/m, 250 W/roll - Voltage 220 - 240 V AC - Protection class IP65 - Impact resistance IK08 - Protection class II - 120 LED/m, 300 lm/m - Beam angle 120° - 4000 K, daylight white - Ra > 80 - Temperature range -30 °C to +40 °C - Energy efficiency class G
For temporary lighting, e.g. on construction sites or in building shells
Shadow-free light
Pleasant daylight white
Item no.: K227056
E-number: 930894538
EAN: 7611664195952
Additional information
| LED per meter | |
|---|---|
| Luminous flux | |
| Luminous flux per meter | |
| Performance | |
| Power per meter | |
| Efficiency | |
| Color temperature | |
| CRI/Ra | |
| Light angle | |
| Tension | |
| Supply line | |
| Supply line length | |
| Protection class | |
| Protection class Plug | |
| Protection class | |
| Weighted consumption | |
| Energy efficiency class | |
| Temperature range | |
| Length | |
| Weight |
